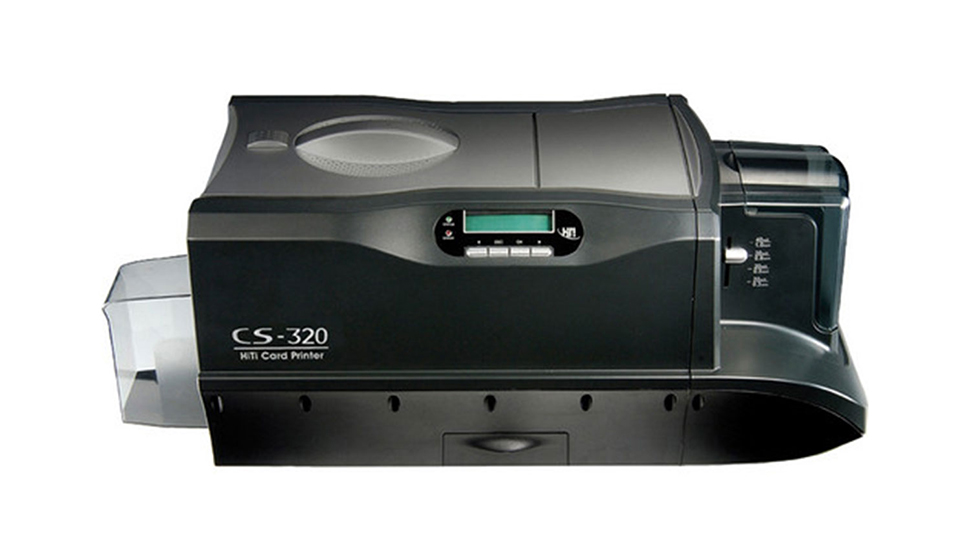

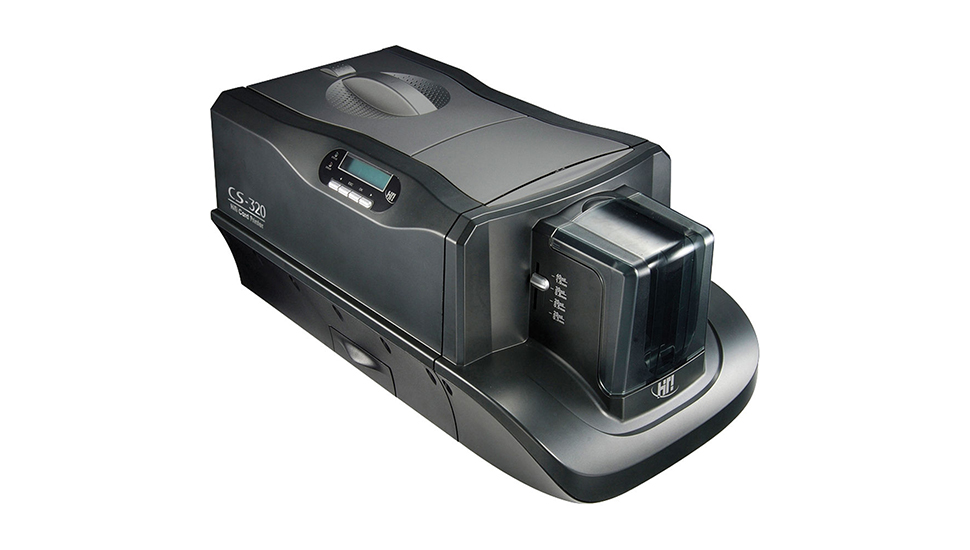

HiTi Card Printer CS 320 (Double Sided)

HiTi Card Printer CS 320 (Double Sided)
HiTi Card Printer CS 320 (Double Sided)

click to enlarge

HiTi Card Printer CS 320 (Double Sided)

Enrichment Color Performance

  • Enrichment Color Performance
  • Up to 16.7 million colors in continuous tone
  • World-leading HiTi Color technology provide photo realistic quality on every print
Enrichment Color Performance

High Reliability and Durability

  • High speed single-sided or double-sided, color or monochrome card printing
  • Allow continuous printing without duty cycle control
  • Ribbon breakage protection technology
High Reliability and Durability

Versatile Module Design

  • Embedded contact smart card encoding module
  • Optional contactless smart card encoding module
  • Magnetic stripe card encoder module is only available at request (high-co / low-co & 4000 oe)*
    • *The magnetic stripe module must be factory installed, please specify when ordering.

Easy-to-Use Features

  • Two-line and multi-language LCM display with printer status / operation command and option display
  • Included bundle software supports customized templates and batch printing management
  • Smart chip embedded for consumable identification and counterfeit ribbon prevention
  • New consumables packing design reduces the logistic expense
Easy-to-Use Features


Specifications

Model Name
CS-320 Double-sided Card Printer
Printing Method
Color Dye Sublimation / Monochrome Thermal Transfer
Resolution
300 X 300 dpi
Display
LCM control panel
Memory
32MB ; 1MB Flash
Printing Speed
Speed Mode: 24 sec per YMCKO single side
Premium photo mode: 32 sec per YMCKO printing
Accepted Card Specification
Size: CR-80 86mm(L) x 54mm(W) / 3.375"(L) x 2.125"(W)
Thickness : 0.3 mm* to 1.0 mm / 10 mil* to 40 mil
* 0.3mm (10mil) only supports single side printing
Card Input Capacity
100 Cards (0.76 mm / 30 mil thickness)
Card Out Capacity
100 Cards (0.76 mm / 30 mil thickness)
Software Driver
Windows 2000 / XP, Mac OS 10.2 and above
Communication Interface
USB 1.1 / USB 2.0 full speed
System Request
IBM-PC or compatible, Windows 2000/XP, Pentium class 133MHz Computer with 128MB of RAM or higher, 100 MB free hard disk space or higher
Dimensions (WxLxH)
275 mm x 508 mm x 251 mm / 10.83" x 20" x 9.9"
Weight
9.1 kg / 20 ibs
Power Supply
100 ~ 240 VAC; 50Hz ~ 60Hz
Operating Condition
10° ~ 32° C / 59° to 89.6°F; 20 ~ 75% non-condensing
Ribbon Option
YMCKO (200 prints)
Resin K (1,000 prints)
KO (500 prints)
YMCKOK (170 prints)
Embedded Encoding Modules (SDK upon request)
Contact Smart Card Encoding Module


Optional Encoding Modules (SDK upon request)
Contactless Smart Card Encoding Module (Mifare ISO 14443 type A available)
Magnetic stripe card encoder, Dual high- and low-coercivity, Track 1, 2, and 3.*
*The magnetic stripe module must be factory installed, please specify when ordering.
Accessories
Clean Kit (Clean cards & swaps)
Clean Module (Clean roller)

Download Brochure File size : 144 KB
