Hand Held Readers

Product Matrix:

ALR-H450 ALR-S350
H450 S350
Type Handheld – WiFi b/g/n 2.4GHz, Bluetooth, Wireless, GPS Sled Handheld – Bluetooth Low Energy connected to Smart Device
Operating System Android 4.4 (Kit Kat) Supports Apple® iOS or the latest Android® operating systems
CPU/Mem Quad-Core 1.3GHz
1 GByte RAM
4 GBytes Flash		 Embedded in selected Smart Device, Supports phones and tablets
Antenna 4dBic 5dBic with software switchable linear, circular or in proximity modes
Scanner 1-D and 2-D Barcode 1-D and 2-D Barcode
01

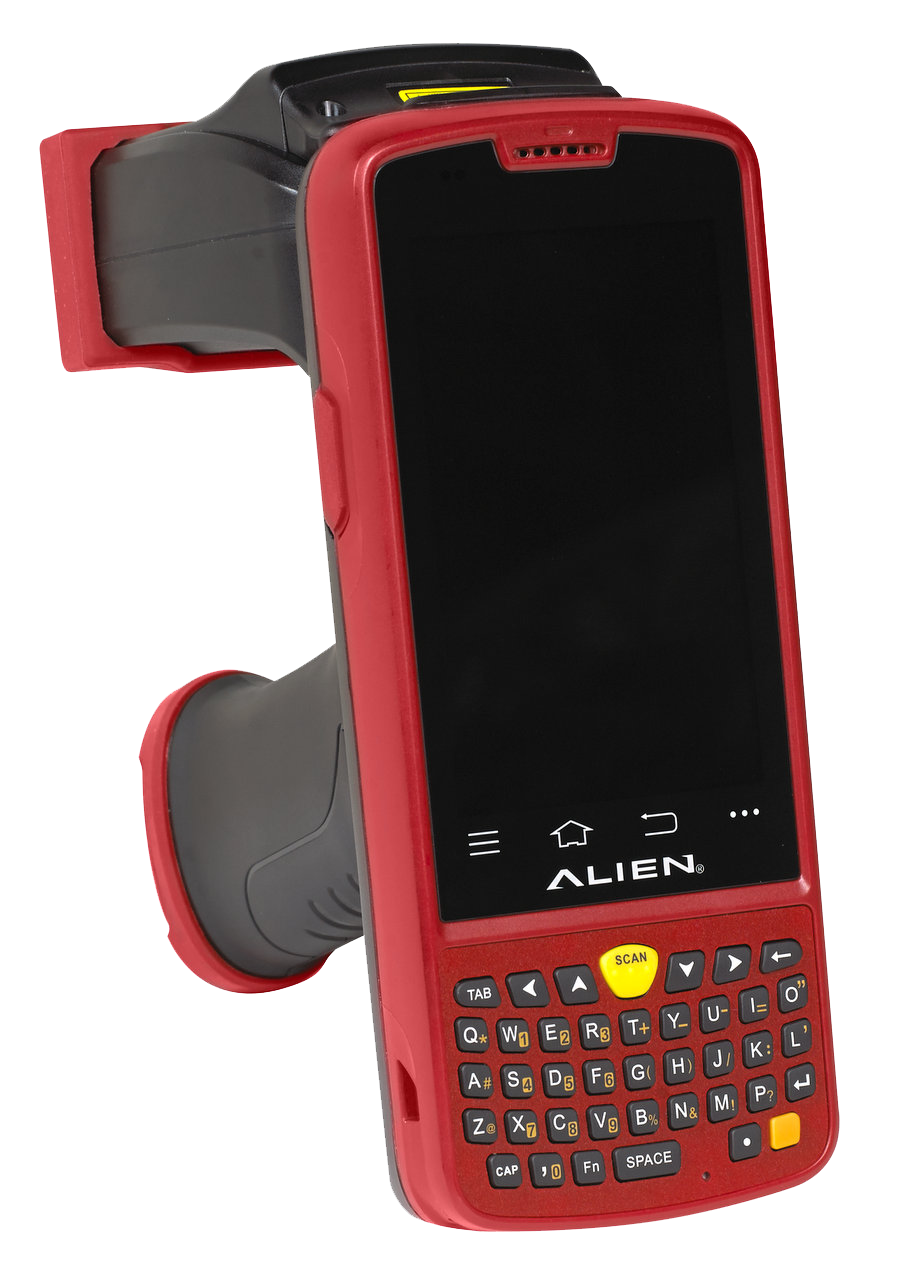

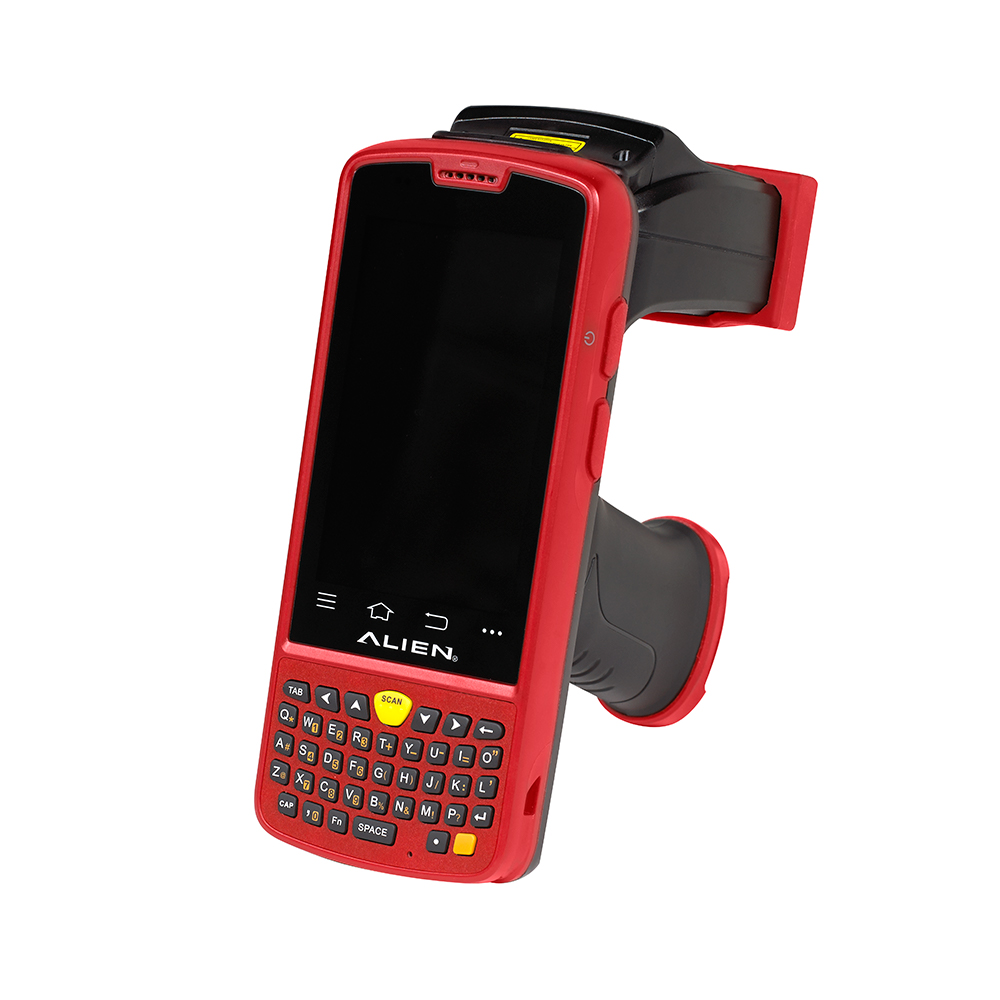

ALR-H450
Android “Connected” Handheld

  • Ergonomic design provides superior user comfort and use
  • “Connected” via the full set of wireless networking
  • High performance antenna and fast processor delivers boost in read distance and rates

Benefits:

Benefit Enabled By: What does this mean to me?
Ease of Use
  • Full QWERTY keyboard
  • Dual high-power lithium-polymer batteries
  • Open source Android software development
  • Simplifies data input
  • All day usage without recharging
  • Easy to provide custom apps
High Performance
  • Unique high-performance, high gain antenna (unusual for a handheld)
  • Quad-core 1.3GHz CPU’s
  • Reads tags further than most handheld RFID solutions
  • Reads and processes those tags faster
  • Runs Android apps faster
A fully “connected” handheld
  • WiFi 802.11 b/g/n
  • 3G cellular built in
  • Bluetooth 4.0
  • Wireless simplicity
  • Always connected
  • Allows connection to corporate networks
02

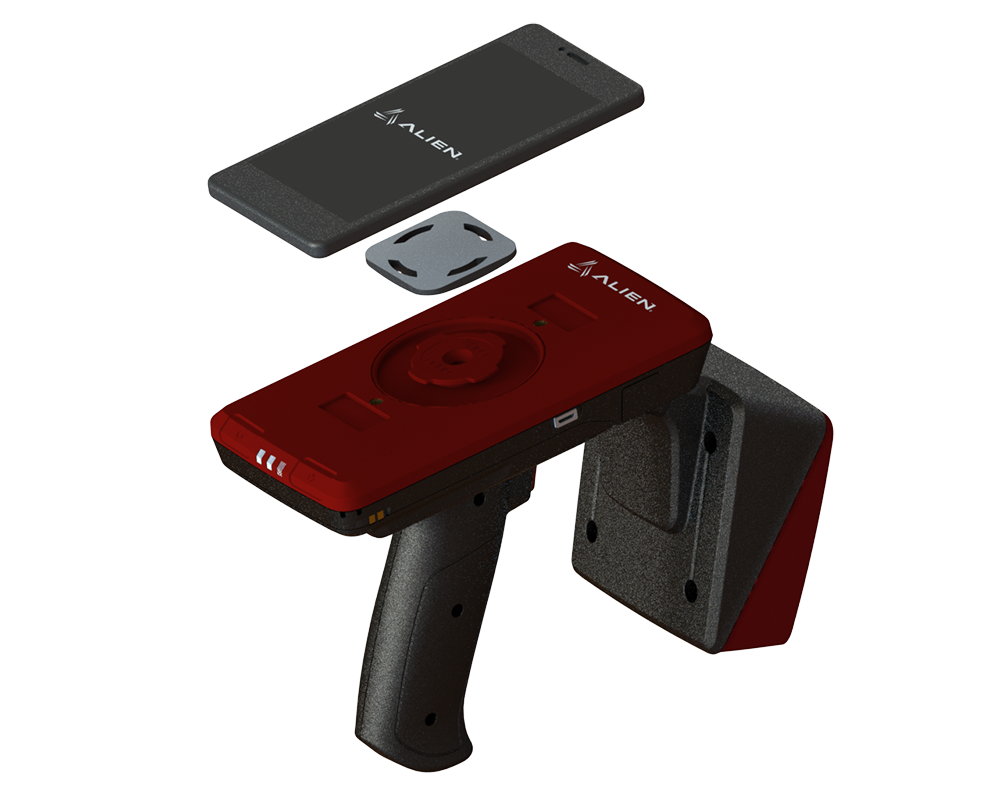

ALR-S350 Sled Handheld
Universal Mobile RFID without the Hassle

The ALR-S350 is a robust, simple to use UHF passive RFID sled designed for all day intensive use. The sled characteristics provides the flexibility to use your preferred operating system type/version while enabling access to the latest generation in communications infrastructure without being tied more slowly evolving monolithic device.

Benefits:

Feature Enabled By Benefit
Long Battery Life
  • Double-capacity single battery
  • Low power electronics
    Up to 24 hours of intensive use
Robust Design
  • Dust and water ingress protection (IP54)
  • Solid drop tested design (1.5m/4,9ft)
  • Quadlock® robust phone mounting
 Robust to normal knocks and drops despite being a sled form-factor
Simple to Use
  • Effortless Bluetooth 4.2 (Low Energy) connectivity
  • Single battery operation – only one battery to manage
  • Simple smart device pairing
  • No battery swapping required
  • Dual battery systems may not operate when one of the batteries is weak
Operating System and Communications Technology Agnostic
  • Sled design splits RFID from Comms and O/S
  • Apps dowloadable from the Apple App Store and the Google Play Store
  • Use Android or iOS
  • Use LTE of next gen 5G services
  • Use latest WiFi 802.11ac, ad etc
  • Use a phone, tablet or media player (e.g. iPod Touch)
