Alien provides a range of circular polarized antenna designed to meet the most challenging applications. While Alien readers are designed to work with any antenna with a suitable gain, the antenna here have been specifically designed to be paired efficiently with our readers. These antenna also work with any RFID reader. The ALR-8698 is an example of an antenna that has a narrow beam and high gain that is more unusual in the industry and can offer low power readers greater performance.
Product Matrix:
| ALR-A1001 | ALR-A0501 | ALR-8697 | ALR-8698 | ALR-8696 | |
|---|---|---|---|---|---|
| Frequency | 865-867MHz 902-928MHz |
865-868MHz 902-928MHz |
865 – 928MHz | 866 – 928MHz | 865-960MHz |
| Gain | 8.5dBic | 6dBic | 8.5dBic | 11 dBic (FCC) 10dBic (ETSI) |
8.5dBic |
| Size | 9.84” x 9.84” x 0.55” | 5.04” x 5.04” x 0.79” | 10.16” x 10.16” x 1.42” | 10.2” x 10.2” x 1.32” | |
| Cable/Connector | Inset SMA male connector | No cable / inset RTNC (i.e. any cable) | 20ft (6m) w/RTNC | ||
| IP Rating | IP67 | IP54 | |||
Benefits:
| Benefit | Enabled By: | What does this mean to me? |
|---|---|---|

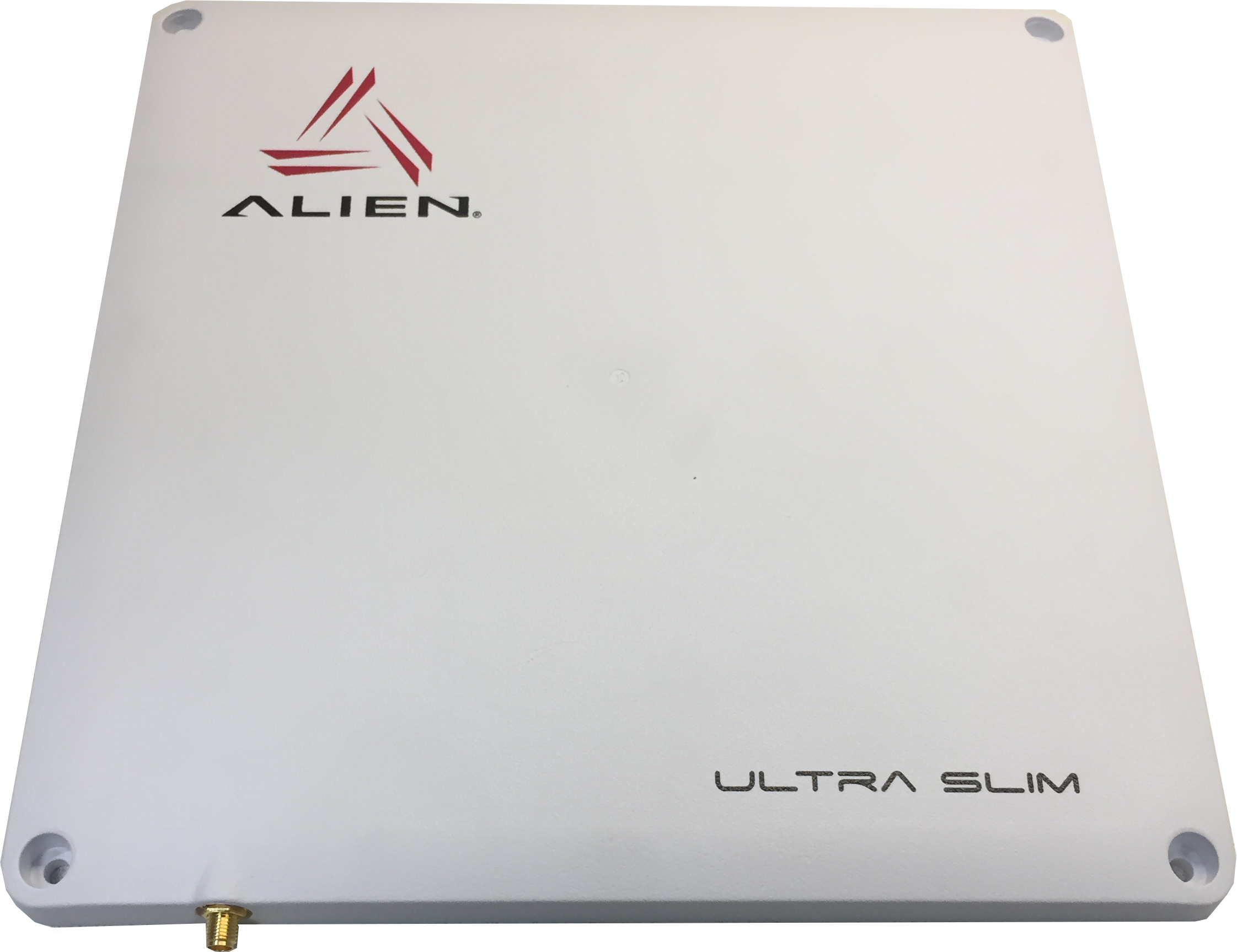

| A thin antenna with no protrusions | Low profile, just 14mm/0.55” thick | Enables mounting where objects may otherwise hit or damage a larger antenna |
| Built to keep the elements out | Weather and UV resistant and IP67 rating | Designed for a variety of inside and outside applications that demand a robust antenna |
| Highly efficient antenna | Extremely low VSWR and axial ratio | Read tags in challenging environment and/or at greater distances. Very robust read capability regardless of tag orientation. |
Benefits:
| Benefit | Enabled By: | What does this mean to me? |
|---|---|---|

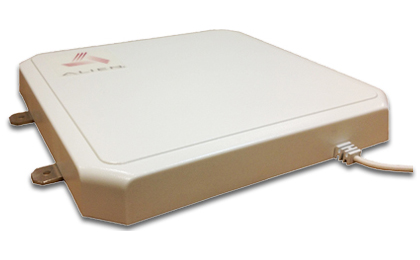

| Wide band antenna | 865 – 960 MHz antenna | Single antenna for worldwide usage |
| A thin antenna with no protrusions | Low profile | Enables mounting where objects may otherwise hit or damage a larger antenna |
| Built to keep the elements out | Weather and UV resistant | Designed for a variety of inside and outside applications that demand a robust IP54 antenna |
| Highly efficient antenna | Extremely low VSWR and axial ratio | Read tags in challenging environment and/or at greater distances. Very robust read capability regardless of tag orientation |
