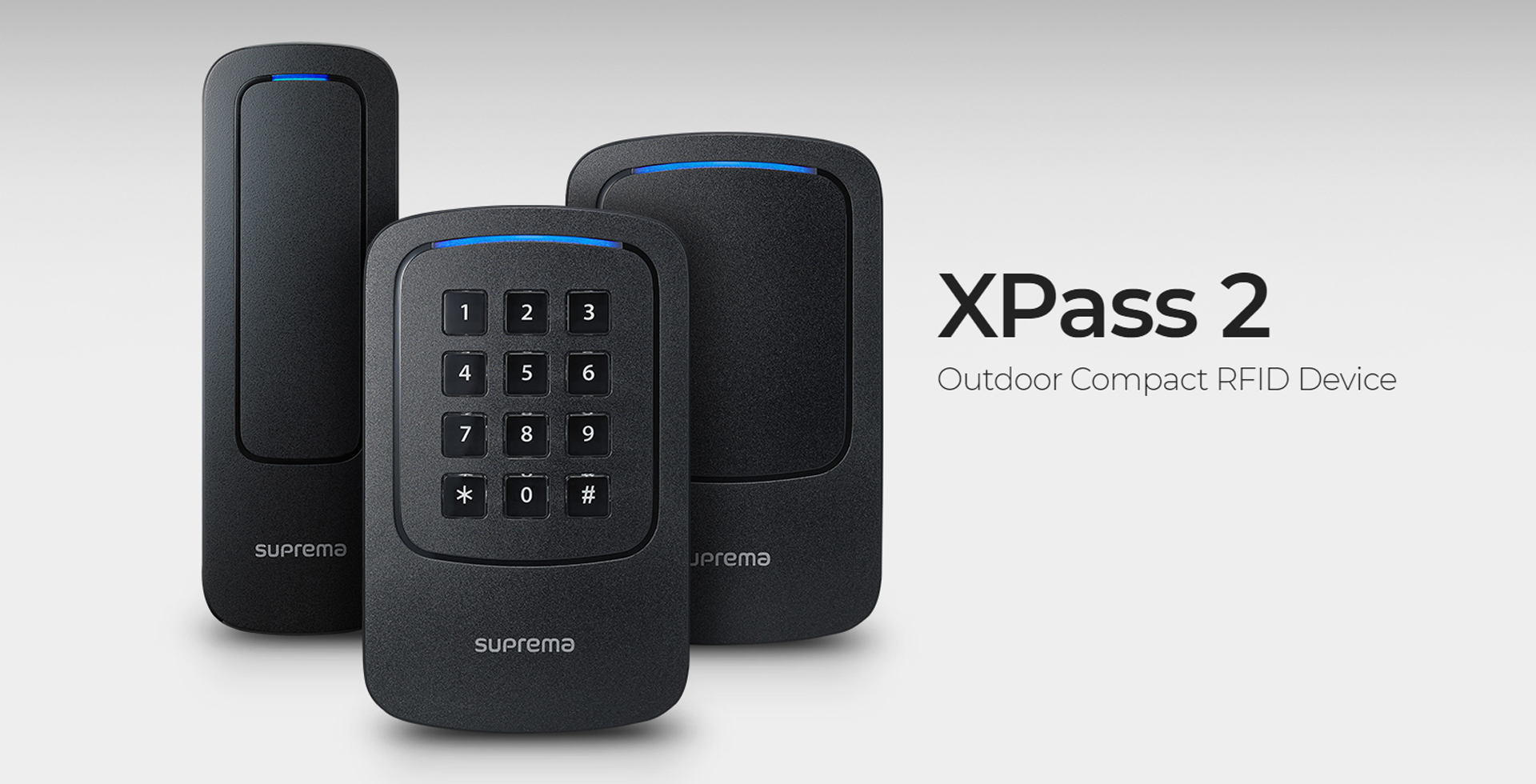

XPass 2 is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology, mullion-type, gangbox-type, and gangbox keypad-type are all supported which provides perfect installation in various environments. XPass 2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environment and outdoor installation.
Featuring dual-frequency RFID card technology, XPass 2 supports both LF(125KHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credential, XPass 2 supports most types of RFID card standards with a single device including 125 Khz EM, Wiegand format card, 13.56 Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC, and BLE.
02

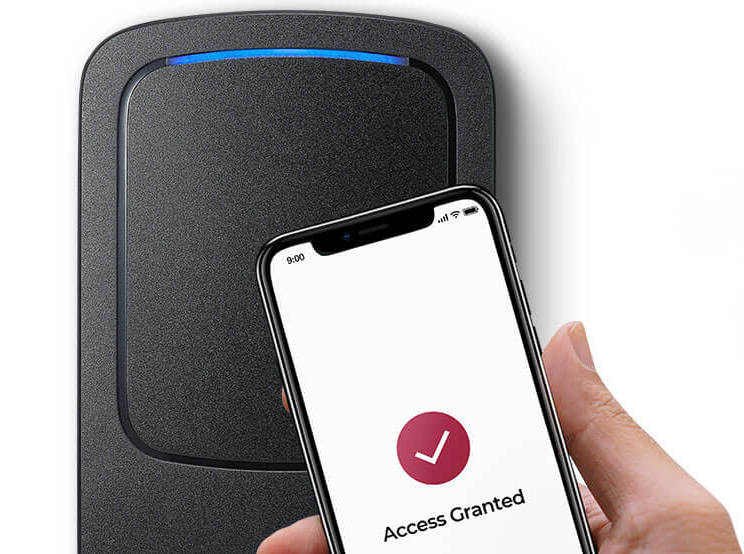

Communicates
with Smartphones
With BioStar 2 Mobile card, as a credential, your smartphone is a key to access.
BLE (Bluetooth Low Energy)
Communicates through BLE in Android Protecting data communications by algorithmization of AES 128 bit encryptionNFC (Near Field Communication)
Communicates through NFC’s HCE in Android *note that HCE in available from all Android mobiles. It is recommended to check the mobile spec, but it is supported mostly latest models. Protecting data communications by algorithmization of AES bit encryption
Communicates through BLE in iOS Protecting data communications by algorithmization of AES 128 bit encryption
03

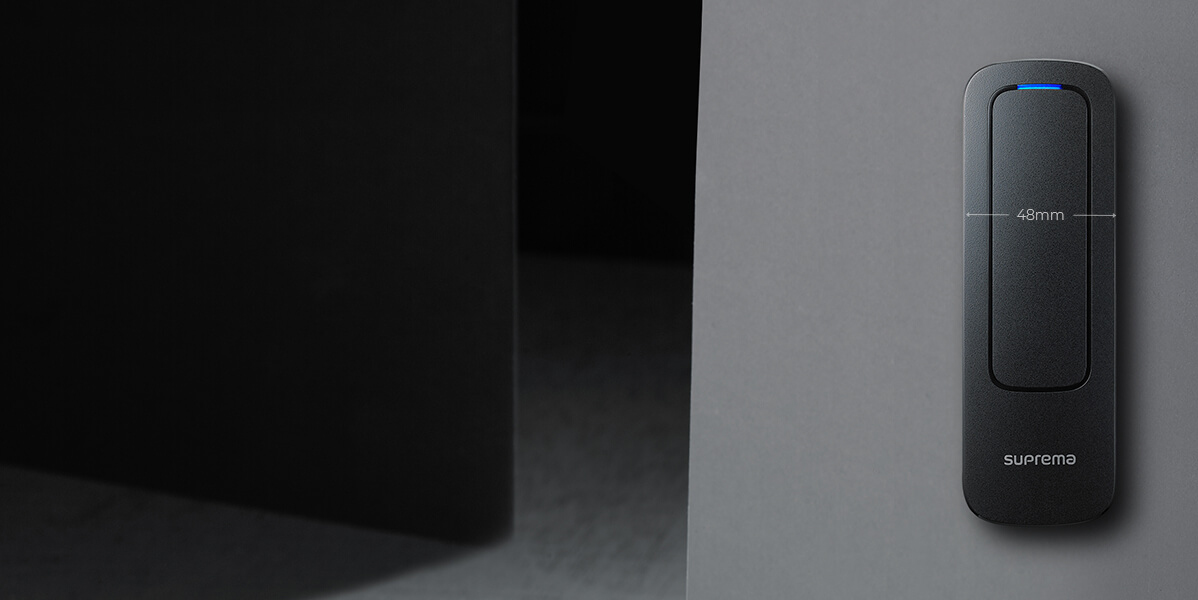

Mullion-type
Design
With its 48mm width, XPass 2 perfectly fits in narrow spaces and door frames.
xxx
04

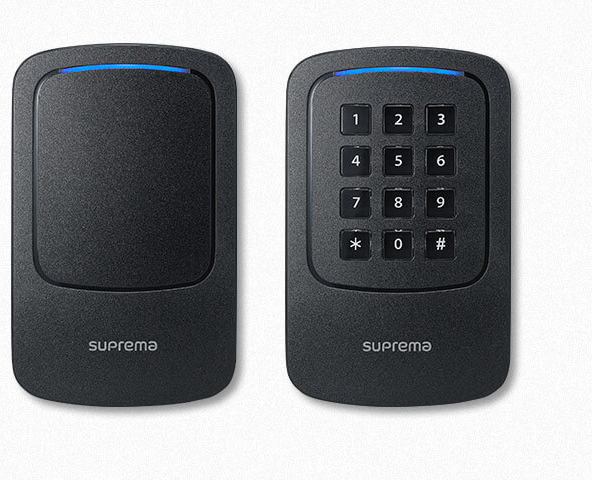

Gangbox-type
Design
XPass 2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs.

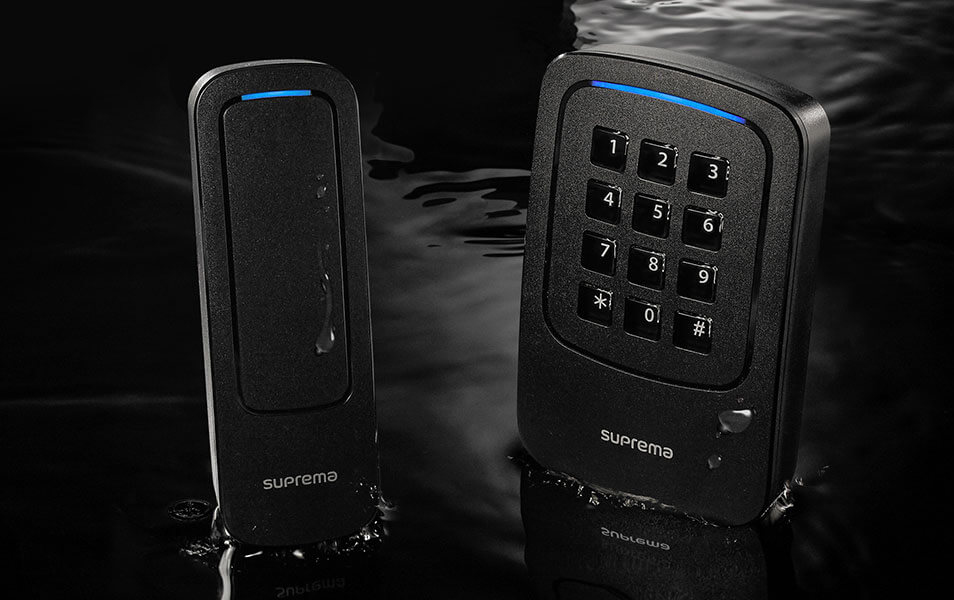

XPass 2 offers superior ingress protection with its IP65, IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, XPass 2 is the ideal choice for outdoor applications.

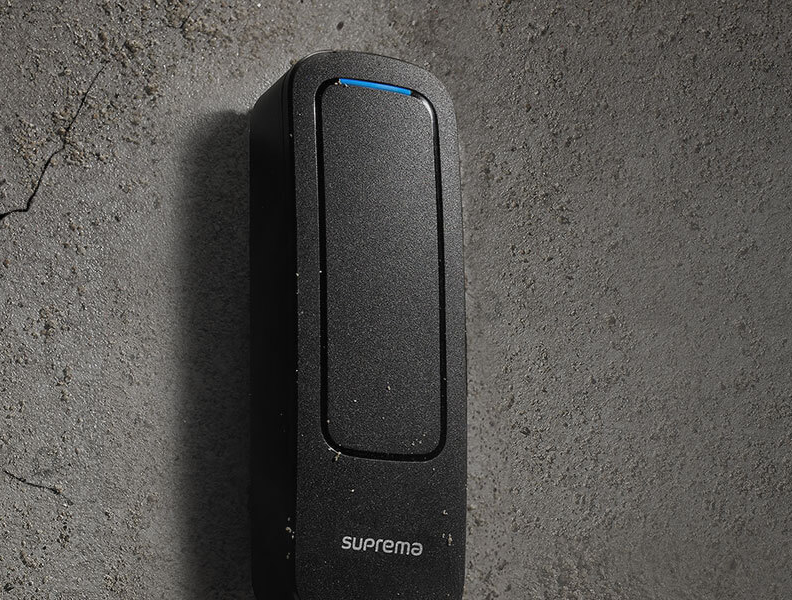

The XPass 2 comes with a robust, vandal-resistant housing. Combining reinforced resin with Suprema’s sophisticated engineering, the XPass 2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IK08 ingress protection, XPass 2 is a perfect solution for outdoor applications.

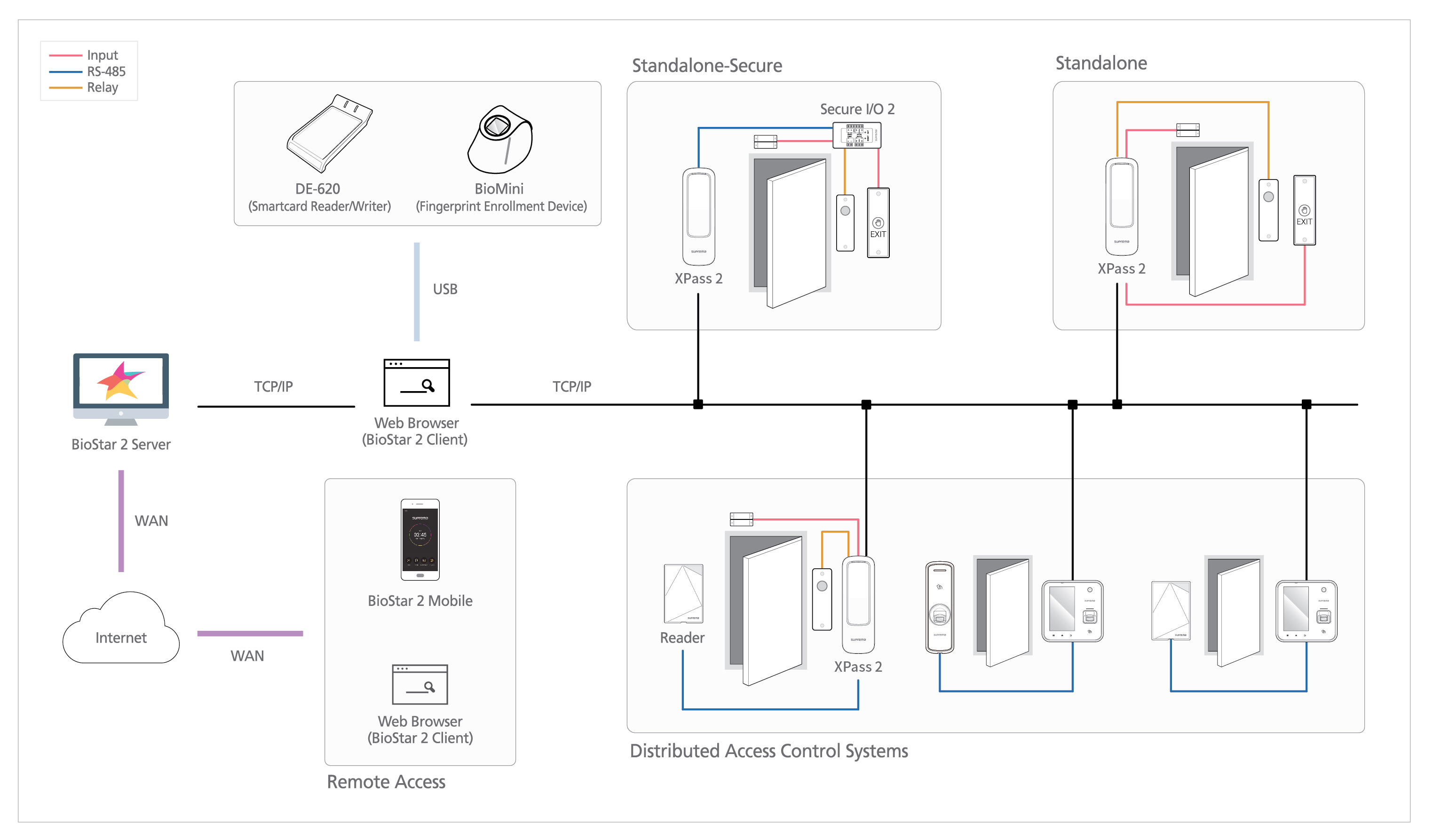

Configuration
Specification
| Model Name | XP2-MDPB | XP2-GDPB | |
|---|---|---|---|
| RFID | RF Option | 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa | 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa |
| Mobile Card | NFC, BLE | NFC, BLE | |
| Protections | Ingress Protection | IP65, IP67 | IP65, IP67 |
| Vandal Proof | IK08 | IK08 | |
| Capacity (RFID) | Users (1:1) | 200,000 | 200,000 |
| Text Log | 1,000,000 | 1,000,000 | |
| PIN | Not supported | Not supported | |
| HW | CPU | 1 GHz | 1 GHz |
| Memory | 4 GB Flash + 64 MB RAM | 4 GB Flash + 64 MB RAM | |
| LCD Type | Not supported | Not supported | |
| LED | Multiple colors | Multiple colors | |
| Sound | Multi-tone Buzzer | Multi-tone Buzzer | |
| Operating Temperature | -35°C ~ 65°C | -35°C ~ 65°C | |
| Storage Temperature | -40°C ~ 70°C | -40°C ~ 70°C | |
| Operating Humidity | 0% ~ 95%, non-condensing | 0% ~ 95%, non-condensing | |
| Storage Humidity | 0% ~ 95%, non-condensing | 0% ~ 95%, non-condensing | |
| Weight | Device: 144g, Bracket: 30g (Including washer and bolt) | Device: 220g, Bracket: 52g (Including washer and bolt) | |
| Dimension (WxHxD, mm) | 48 x 145 x 27 | 80 x 130 x 25 | |
| Tamper | Supported | Supported | |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE, SIG | CE, FCC, KC, RoHS, REACH, WEEE, SIG | |
| Interface | Wi-Fi | Not supported | Not supported |
| Ethernet | 10/100 Mbps, auto MDI/MDI-X | 10/100 Mbps, auto MDI/MDI-X | |
| RS-485 | 1ch Master or Slave (Selectable) | 1ch Master or Slave (Selectable) | |
| Wiegand | 1ch Input or Output (Selectable) | 1ch Input or Output (Selectable) | |
| TTL Input | 2ch Input | 2ch Input | |
| Relay | 1 Relay | 1 Relay | |
| USB | Not supported | Not supported | |
| SD Card | Not supported | Not supported | |
| PoE | Supported (IEEE 802.3af compliant) | Supported (IEEE 802.3af compliant) | |
| Intercom | Not supported | Not supported | |
| Electrical | Electrical | DC 12 V / DC 24 V | DC 12 V / DC 24 V |
