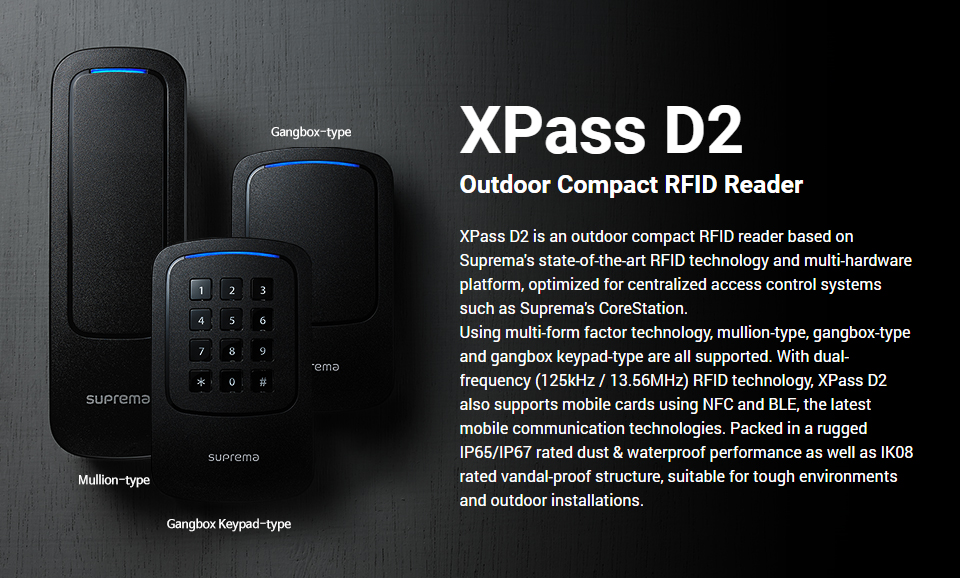

Featuring dual-frequency RFID card technology, XPass D2 supports both LF(125KHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credential, XPass D2 supports most types of RFID card standards with a single device including EM, MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC and BLE.

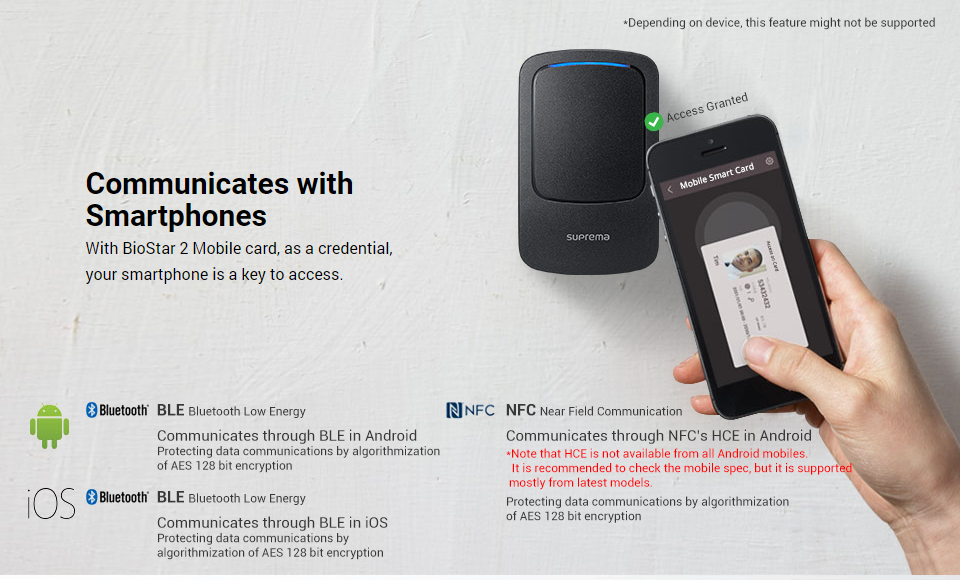

NFC Near Field Communication
Communicates through NFC's HCE in Android
Protecting data communications by algorithmization of AES 128 bit encryption

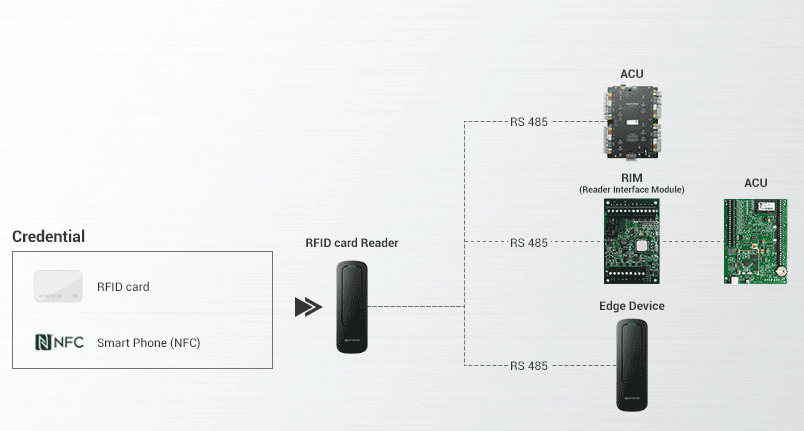

Combined with Suprema’s intelligent biometric controller, the CoreStation, XPass D2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.

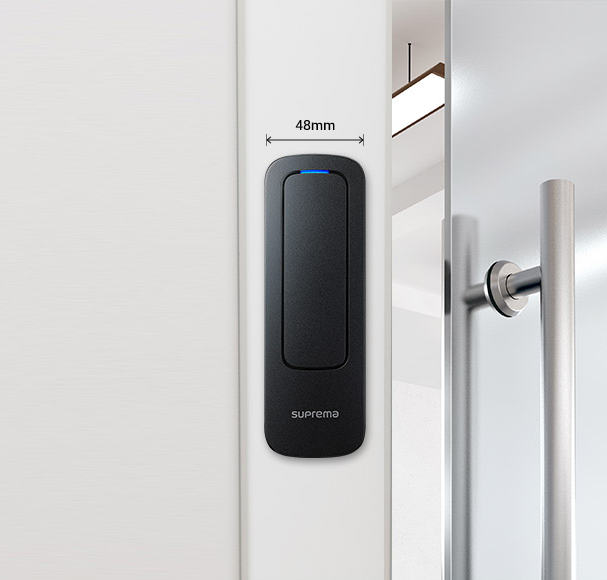

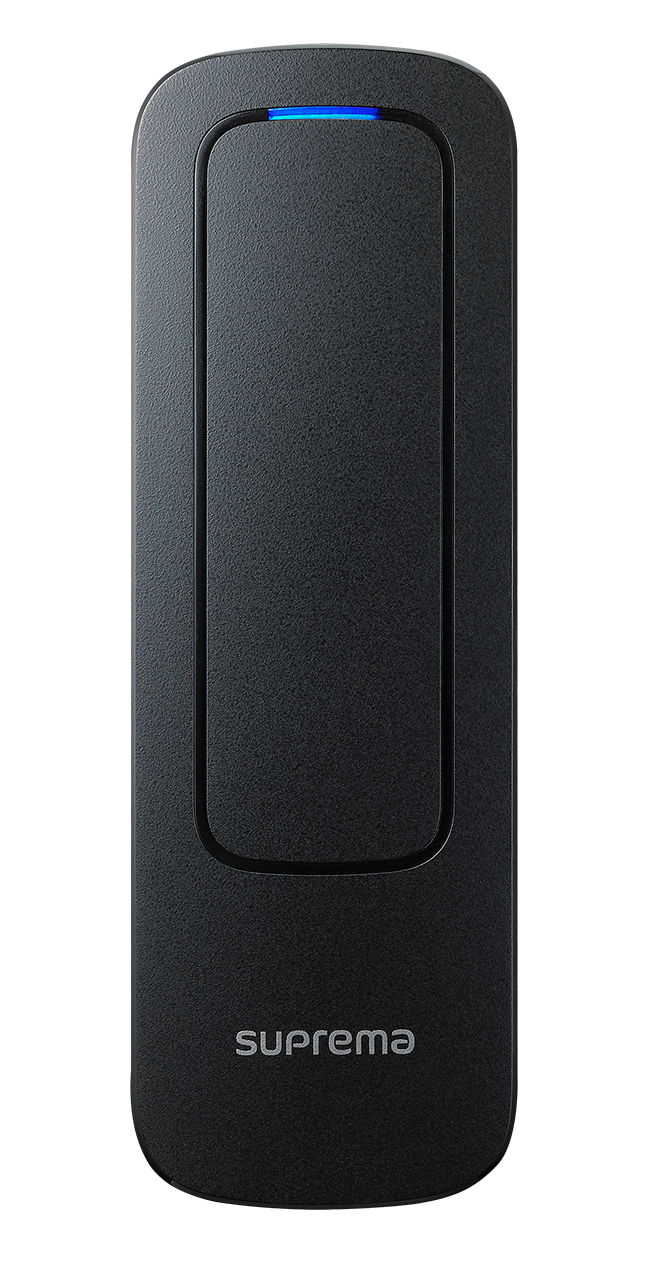

With its 48mm width, XPass D2 perfectly fits in in narrow spaces and door frames

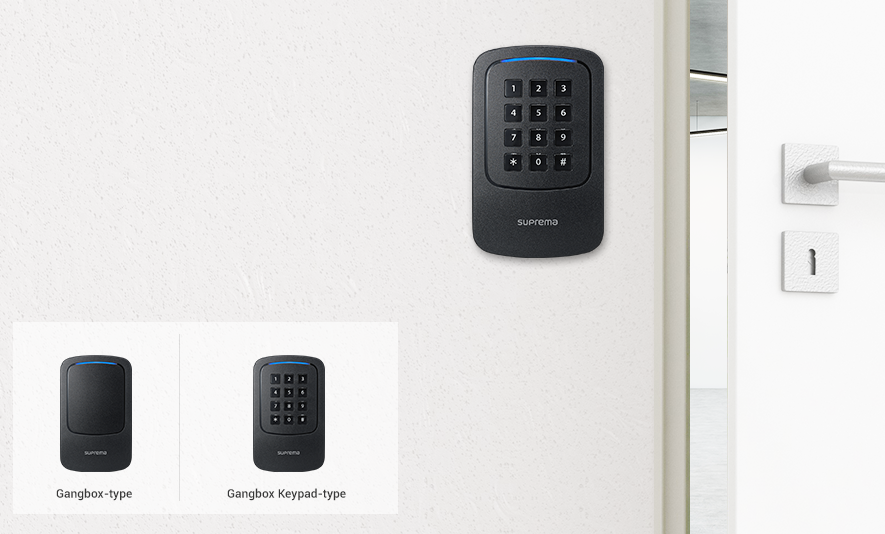

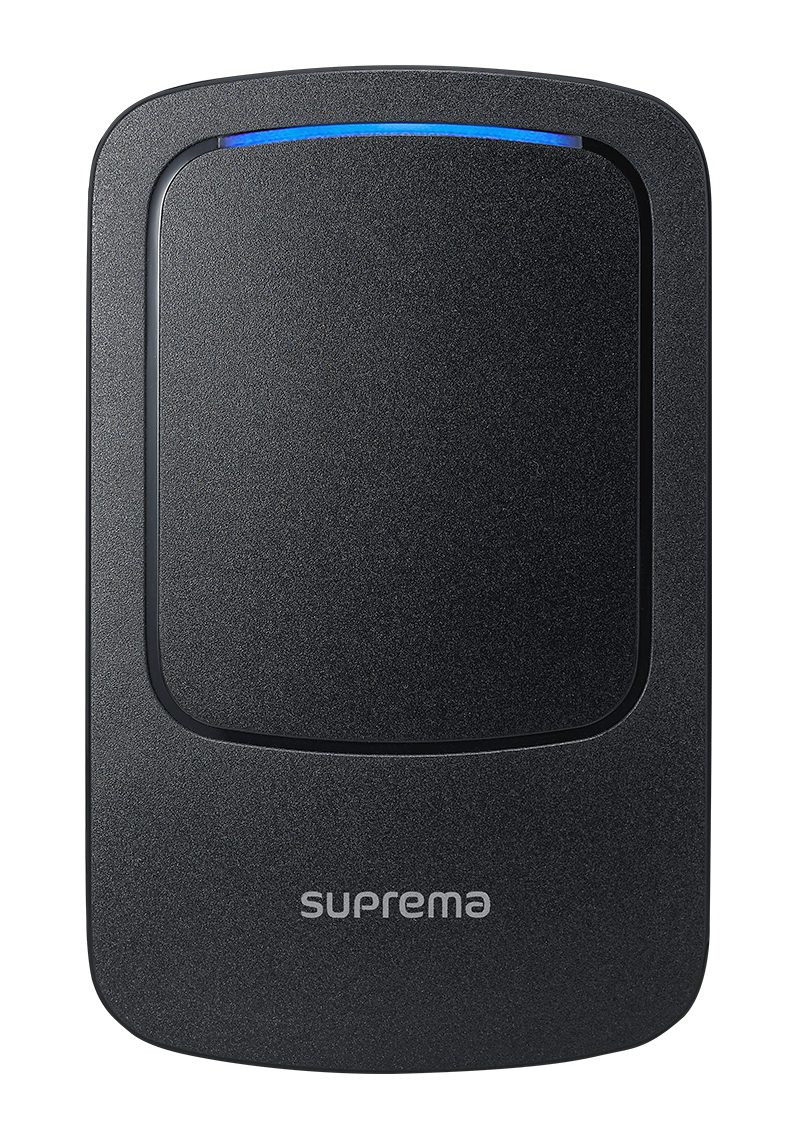

XPass D2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs
XPass D2 offers superior ingress protection with its IP65, IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, XPass D2 is the ideal choice for outdoor applications.
XPass D2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs
| Form Factor |
|
|
|
|---|---|---|---|
| 125kHz card compatibility | EM | EM | EM |
| 13.56MHz card compatibility | MIFARE, MIFARE Plus, DESFire/EV1, FeliCa | MIFARE, MIFARE Plus, DESFire/EV1, FeliCa | MIFARE, MIFARE Plus, DESFire/EV1, FeliCa |
| Mobile Card | NFC, BLE | NFC, BLE | NFC, BLE |
| Ingress Protection | IP67 | IP67 | IP67 |
| Impact Protection | IK08 | IK08 | IK08 |
| Installation type | Mullion | Gangbox | Gangbox |

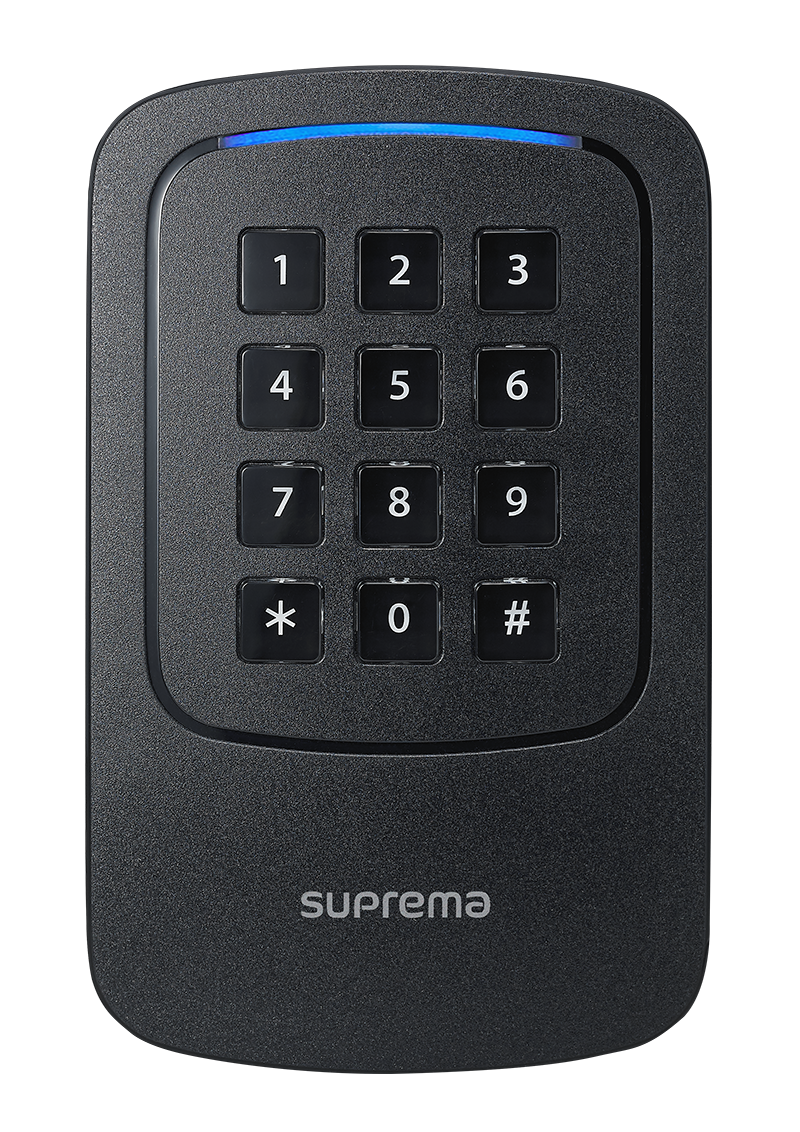

| Keypad | - | - | Support (3x4) |
| RS-485 | 1ch (OSDP compatible) | 1ch (OSDP compatible) | 1ch (OSDP compatible) |
| Wiegand | 1ch output | 1ch output | 1ch output |
| TTL | 1ch damper print, 3ch LED, Buzzer Control |
1ch damper print, 3ch LED, Buzzer Control |
1ch damper print, 3ch LED, Buzzer Control |
| Sound | Multi-tone buzzer | Multi-tone buzzer | Multi-tone buzzer |
| Operating Temperature | -35℃ ~ 65℃ | -35℃ ~ 65℃ | -35℃ ~ 65℃ |
| Operating Humidity | 0% ~ 95%, non-condensing | 0% ~ 95%, non-condensing | 0% ~ 95%, non-condensing |
| Power | DC 12V | DC 12V | DC 12V |
| Dimensions (WxHxD, mm) | 48 x 144.7 x 27 | 80 x 130 x 25 | 80 x 130 x 25 |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE, SIG | CE, FCC, KC, RoHS, REACH, WEEE, SIG | CE, FCC, KC, RoHS, REACH, WEEE, SIG |

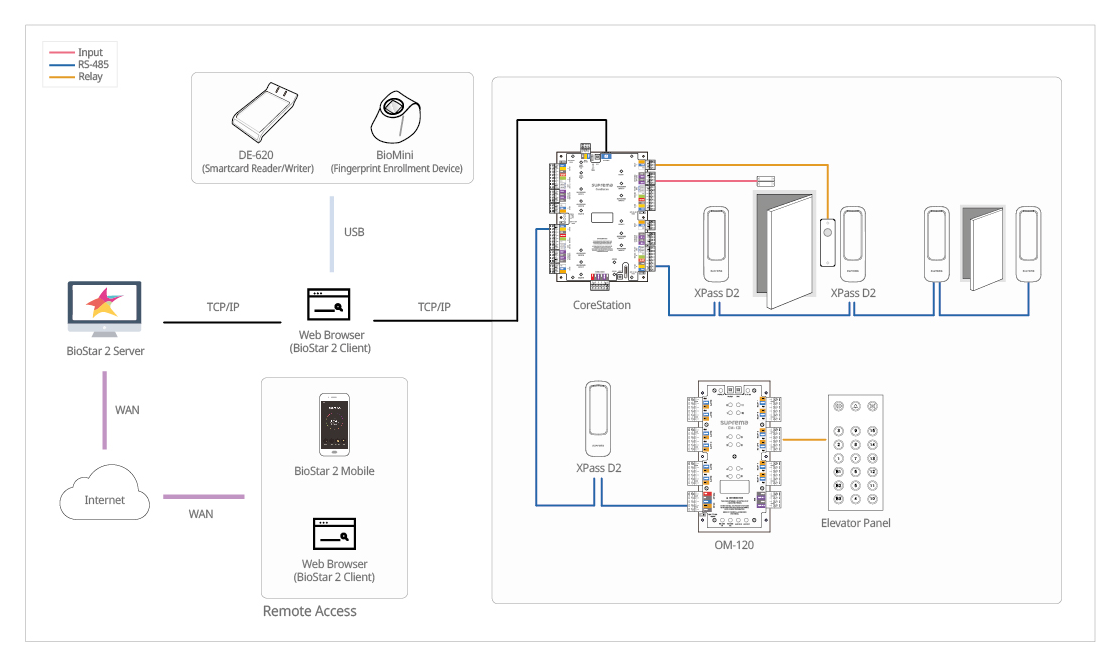

Configuration
Specification
| Credential | LF card option | EM |
| HF card option | MIFARE, MIFARE Plus, DESFire/EV1, FeliCa | |
| NFC card | Supported | |
| BLE card | Supported | |
| RF read range* |
MIFARE/DESFire/EM : 50 mm, FeliCa: 30 mm RF read range will vary depending on the installation environment. |
|
| Hardware | CPU | 80 MHz |
| Memory | 256 KB Flash + 64 KB RAM | |
| LED | Multi-color | |
| Sound | Multi-tone Buzzer | |
| Operating temperature | -35°C ~ 65°C | |
| Storage temperature | -40°C ~ 70°C | |
| Operating humidity | 0% ~ 95%, non-condensing | |
| Storage humidity | 0% ~ 95%, non-condensing | |
| Dimension (W x H x D) | 48 mm x 144.7 mm x 27 mm | |
| Weight | Device: 117g Bracket: 30g (Including washer and bolt) |
|
| IP rating | IP65, IP67 | |
| IK rating | IK08 * Ingress Protection rating | |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE, SIG | |
| Interface | RS-485 | 1ch |
| Wiegand | 1ch | |
| LED | 2ch | |
| Beep | 1ch | |
| Tamper | Supported | |
| Electrical | Power | Voltage: DC 12 V, Current: Max. 400 mA * Use 12 VDC, 1.5A power supply. |
| Switch input VIH | Min. 3 V Max. 5 V |
|
| Switch input VIL | Max. 1 V | |
| Switch Pull-up resistance | 4.7 kΩ (The input ports are pulled up with 4.7 kΩ.) | |
| Wiegand output VOH | More than 4.8 V | |
| Wiegand output VOL | Less than 0.2 V | |
| Wiegand output Pull-up resistance | Internally pulled up with 1 kΩ |
