Suprema Algorithm
Versatile Interface
Ultra-Fast DSP

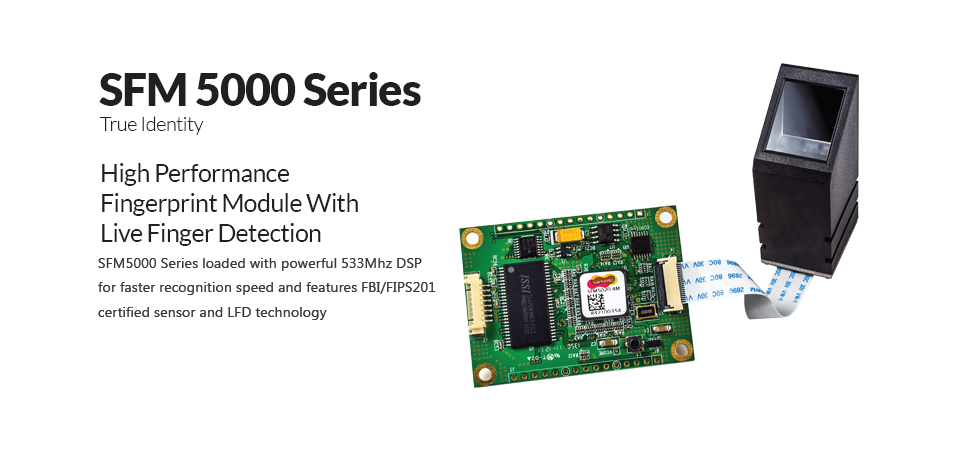

SFM5000 Series features Suprema Algorithm, world’s most reliable fingerprint algorithm that has won Fingerprint Verification Competition (FVC) in both 2004 and 2006. FBI/FIPS201 Certified sensor and Hybrid Live Finger Detection makes 5000 a secure and reliable choice for biometric integration.
SFM5000 Series features quick-boot for Fast power on time, Serial interface with simple protocol, and 8 user configurable digital I/O gives 5000 Series versatility.
Combined strength of Ultra powerful 533Mhz DSP and Suprema Algorithm makes 5000Series a ultra-performer, allowing the module to carry lighting fast enrollment, verification, and identification time.
Specification

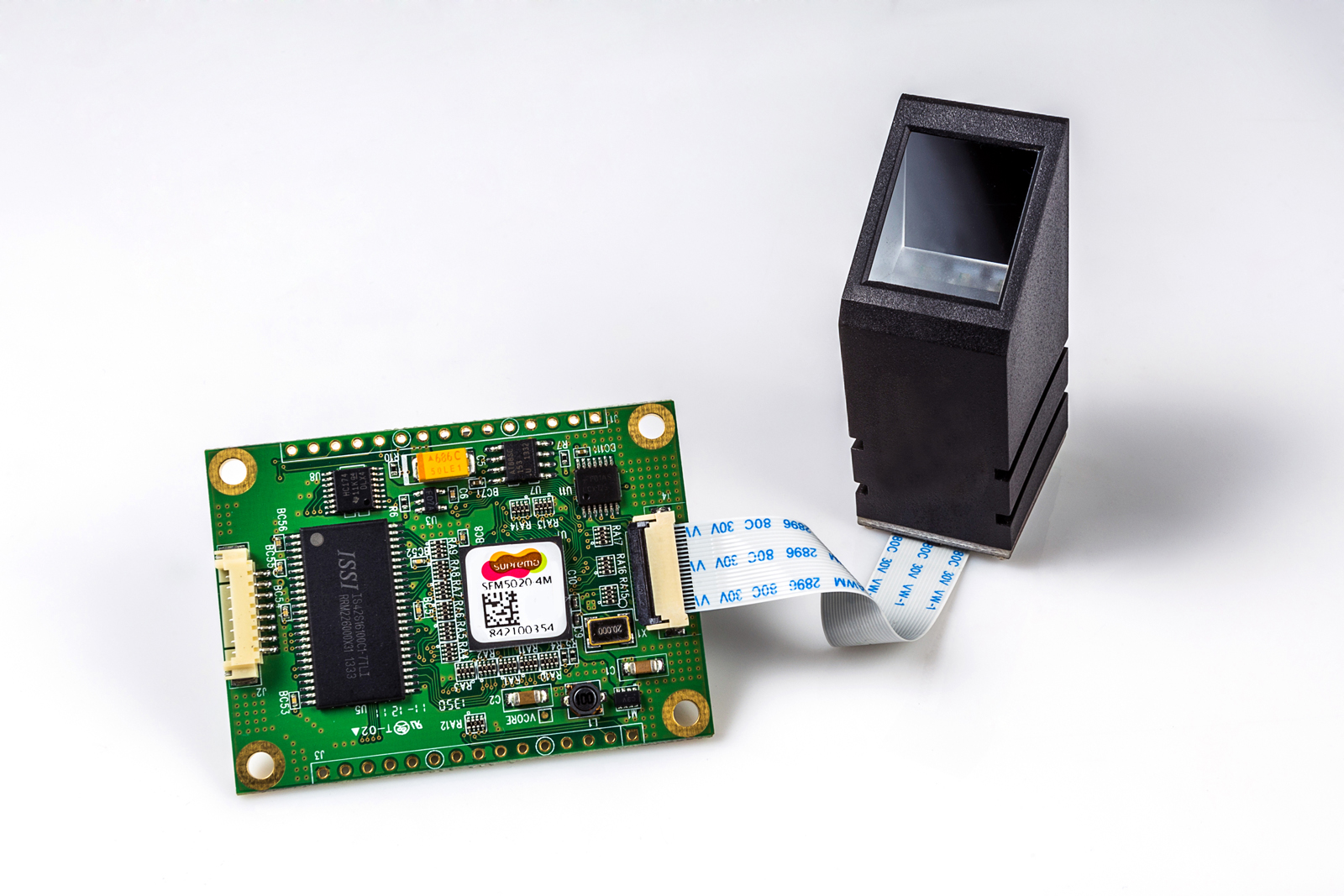

SFM-5020-OP
- Optical fingerprint Sensor
- 500 dpi resolution
- Solid sensor surface
- High quality fingerprint image

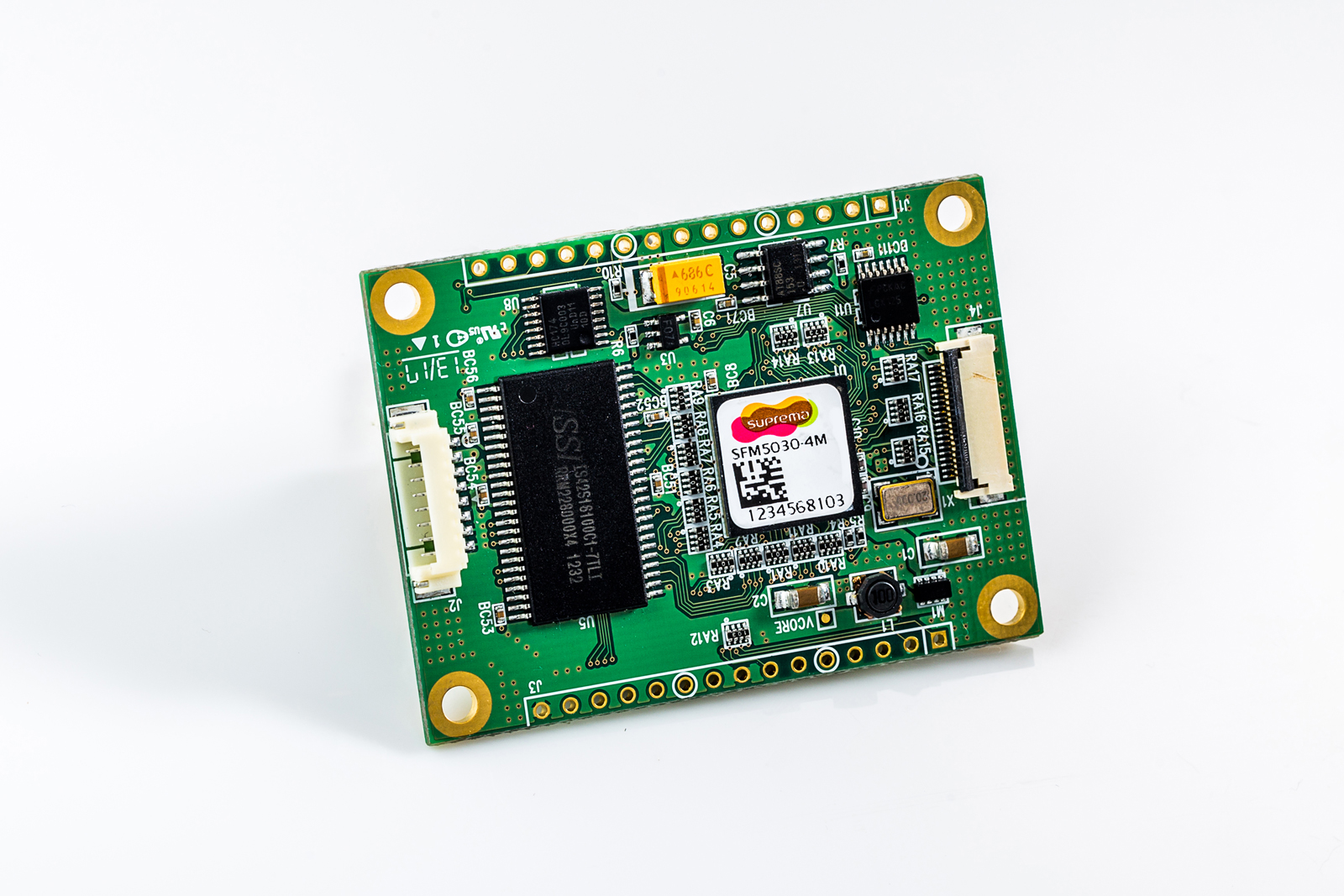

SFM-5030-OC
- Powerful 533MHz DSP
- Improved enrollment & identification speed
- Highly configurable I/O signals
- Fast power-on time
- Fingerprint data encryption
SFM-5060-OH
- Powerful 533Mhz DSP
- Improved enrollment & identification speed
- Highly configurable I/O signals
- Fast power-on time
- Fingerprint data encryption
AVAILABLE ACCESSORIES
Sensor
Braket
Housing
Specification
| Model | |||
|---|---|---|---|
| SFM5020-OP5 | SFM5030-OC4 | SFM5060-OH | |
| CPU | 533MHz DSP | 533MHz DSP | 533MHz DSP |
| Flash Memory | 1 MB (4MB Option) | 1 MB (4MB Option) | 1 MB (4MB Option) |
| EER | < 0.1% | < 0.1% | < 0.1% |
| Enrollment Time | < 600 ms | < 600 ms | < 600 ms |
| 1:1 Verification Time | < 600 ms | < 600 ms | < 600 ms |
| 1:1000 Identification Time* | < 760 ms | < 760 ms | < 760 ms |
| Template Type | Suprema, ISO19794-2, ANSI-378 | Suprema, ISO19794-2, ANSI-378 | Suprema, ISO19794-2, ANSI-378 |
| Template Size | Default: 384 Bytes 256 - 384 Bytes (Configurable) | Default: 384 Bytes 256 - 384 Bytes (Configurable) | Default: 384 Bytes 256 - 384 Bytes (Configurable) |
| Template Capacity | 1,900 @ 1MB Flash 9,500 @ 4MB Flash | 1,900 @ 1MB Flash 9,500 @ 4MB Flash | 1,900 @ 1MB Flash 9,500 @ 4MB Flash |
| Log Capacity | |||
| Host Communication | Asynchronous serial: CMOS level (3.3V) up to 115200 bps | Asynchronous serial: CMOS level (3.3V) up to 115200 bps | Asynchronous serial: CMOS level (3.3V) up to 115200 bps |
| Aux Communication | |||
| Wiegand Interface | |||
| External I/O | 8x Digital I/O | 8x Digital I/O | 8x Digital I/O |
| Encryption (Fingerprint Data) | 256-bit AES | 256-bit AES | 256-bit AES |
| Operating Temperature Range (°C) | -15 to 50 °C | -15 to 50 °C | -15 to 50 °C |
| Supply Voltage | 3.3 VDC Regulated | 3.3 VDC Regulated | 3.3 VDC Regulated |
| Board Size (L x W x H) (mm) | 55 x 40 x 8 | 55 x 40 x 8 | 55 x 40 x 8 |
