RFID Readers

Our readers are built for the challenging environments that are representative in the real world. They are robust, tough and high performance even in the most challenging conditions. Our readers are different. They have advanced “filtering” and “intelligence” that competitors do not possess. This benefits you with less network traffic, fewer additional pieces of network equipment and lower setup and maintenance costs.

Product Matrix:

ALR-F800-X ALR-F800 ALR-9900+ ALR-9680 ALR-9650
Type Enterprise with multiple reader management Enterprise Enterprise Commercial Commercial
Self Optimizing Yes Yes No No No
PoE Transmit Power World’s Highest World’s Highest N/A Good Good
Protocol ARP/LLRP ARP/LLRP ARP/LLRP ARP ARP
Operating System Linux Linux Linux Linux Linux
Emissary* Yes No No No No
Memory 1GB RAM
4 Gbytes Flash		 512 Mbytes RAM
4 Gbytes Flash		 64 Mbytes RAM
64 Mbytes Flash		 64 Mbytes RAM
64 Mbytes Flash		 64 Mbytes RAM
64 Mbytes Flash
# of Antenna Up to 4 Up to 4 Up to 4 Up to 4 1 internal smart-antenna + 1 optional external
GPIOS 4 in / 8 out (Isolated) 4 in / 8 out (Isolated) 4 in / 8 out (Isolated) 2 in / 2 out (TTL) 2 in / 2 out (TTL)
LLRP Yes Yes Yes No No
01

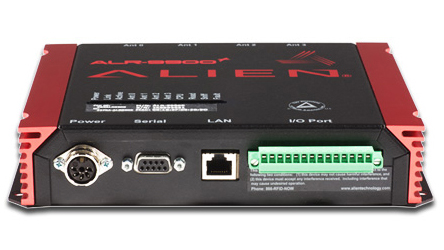

ALR-9900+
Industry Leader in Ease of Use

Benefits:

Benefit Enabled By: What does this mean to me?
Ease of Use
  • Alien Reader Protocol or LLRP
  • Smart reader/autonomous mode
  • Alien Reader Control Architecture & Ruby
  • Easy to set up and deploy
  • No additional costly controllers
  • Less maintenance and overhead
Cost Savings
  • Alien Reader Protocol
  • Smart reader/autonomous mode
  • Best-in-class sensitivity/selectivity
  • Minimizes network infrastructure
  • Minimizes tag size (cost)
  • Less read errors/robust reading
Industry Leading Read Capability
  • Best-in-class sensitivity/selectivity
  • Premier industry read rates
  • Built for challenging RF environments
  • Reduces the number of read points
  • Less equipment required
  • Minimized tag size
Industry Leading Robustness, Intelligence & Security
  • Dynamic Authentication™
  • Leading reader sensitivity/selectivity
  • Highest build quality
  • Optically isolated I/O’s
  • Industry leading anti-cloning
  • Robust & repeatable performance
  • Built for challenging environments
  • Robust physically and electrically
02

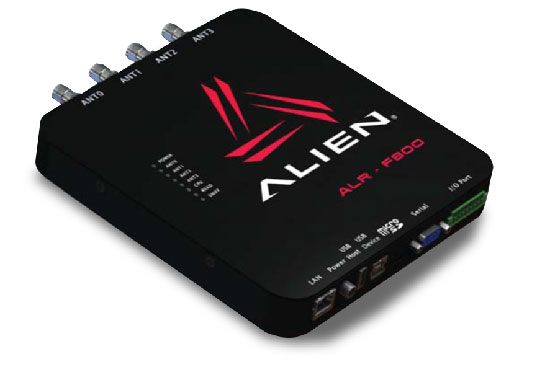

ALR-F800
Self-Optimizing Enterprise RFID Reader

Featuring a new fifth-generation reader architecture that intelligently adapts and configures based on its environment, the ALR-F800 provides the industry’s best Power over Ethernet (PoE) transmit power and performance.The ALR-F800 reader’s discrete architecture offers substantial improvements in function and performance over existing products in the market, enabling new levels of flexibility for system enhancements and future proofing. The improvements include industry standard MicroSD and USB slots for adding memory and additional capabilities such as cellular, Wi-Fi and Bluetooth.

Feature Enabled By Benefit
Ease of Use
  • Alien Reader Protocol or LLRP
  • Smart reader/autonomous mode
  • Alien Reader Control Architecture & Ruby
  • Power over Ethernet
  • Easy to set up and deploy
  • No additional costly controllers
  • Less maintenance and overhead
Industry leading PoE transmit power & power source agnostic
  • Under PoE power, outputs 31.5dBm – significantly more than other readers
  • Dynamically switches between power sources when power fails
  • No power supply expense or bulk
  • Uses standard PoE
  • Best read sensitivity when plenum/ceiling mounted
  • Increased reliability
Dynamically self-optimizing for best possible real-world performance
e.g. noisy or multi-reader environments
  • Dynamic “Smart-throttling” in adverse RF environments
  • Intelligent real-time Phase Cancellation
  • Maximizes the sensitivity and interference rejection in all environments
  • Other confidential techniques
  • Robust against significant tag collisions
  • Maintains optimal sensitivity even in highly reflective environments
  • More likely than competitors to read tags in high interference environments (other readers and RF sources)
Extensible and obsolescence proof
  • Reconfigurable RF subsystem – Enables RF performance upgrades
  • MicroSDslot
  • USBHost
  • Firmware modernization
  • Enables virtually any amount of memory to be added
  • Add external peripherals including cellular, WiFi or BT
03

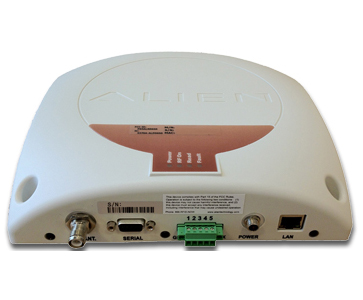

ALR-9650
Cost Effective Smart Antenna

Alien® ALR-9650 combines reader and circular polarized antenna into a single, simple-to-use, inexpensive and low-profile solution. A second antenna port enables 2-antenna applications.

Benefits:

Benefit Enabled By: What does this mean to me?
Ease of Use
  • Integrated antenna
  • Alien Reader Protocol
  • Smart reader/autonomous mode
  • Alien Reader Control Architecture & Ruby
  • Power-over-Ethernet (PoE)
  • Easy to set up and deploy
  • No additional costly controllers
  • Less maintenance and overhead
  • Minimizes network infrastructure
  • Can be set up in areas with no power
  • Small footprint for tidy implementation
Cost Savings
Industry Leading Intelligence & Security
  • Crisis recovery: LAN and power loss
  • UDP heartbeat
  • Remote firmware management
  • Dynamic Authentication™
  • Built to handle real-world situations
  • Uniquely customizable
  • Industry leading anti-cloning
