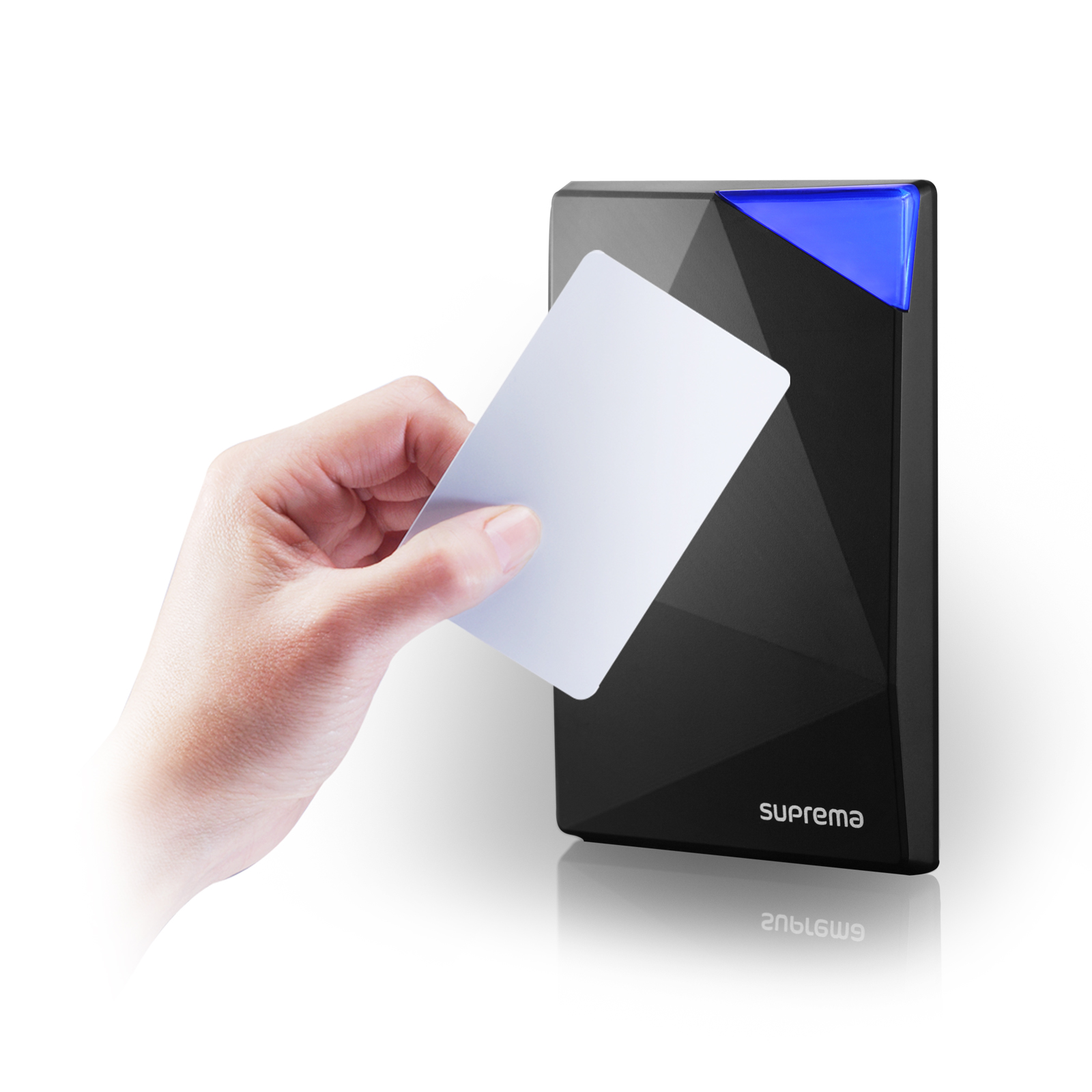

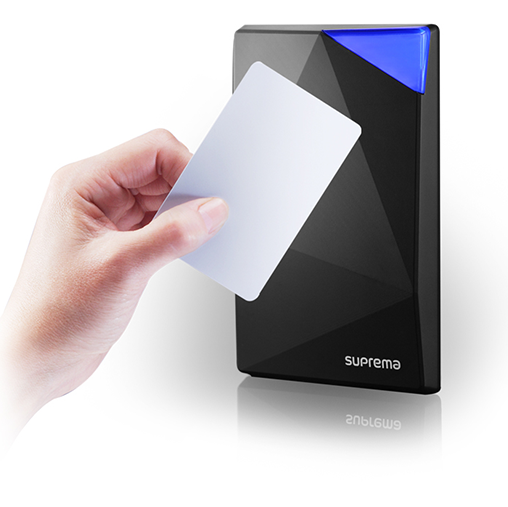

Multi-Smartcard Reader
Minimalistic Ultra Slim Design
IP-Rated Waterproof Structure
Adaptive Temperature Control
The Xpass S2 features innovative multi-smartcard support. This new feature give Xpass S2 ability to read multiple formats from MIFARE Classic®, DESFire®, ISO14443A/B, ISO15693, to Felica.

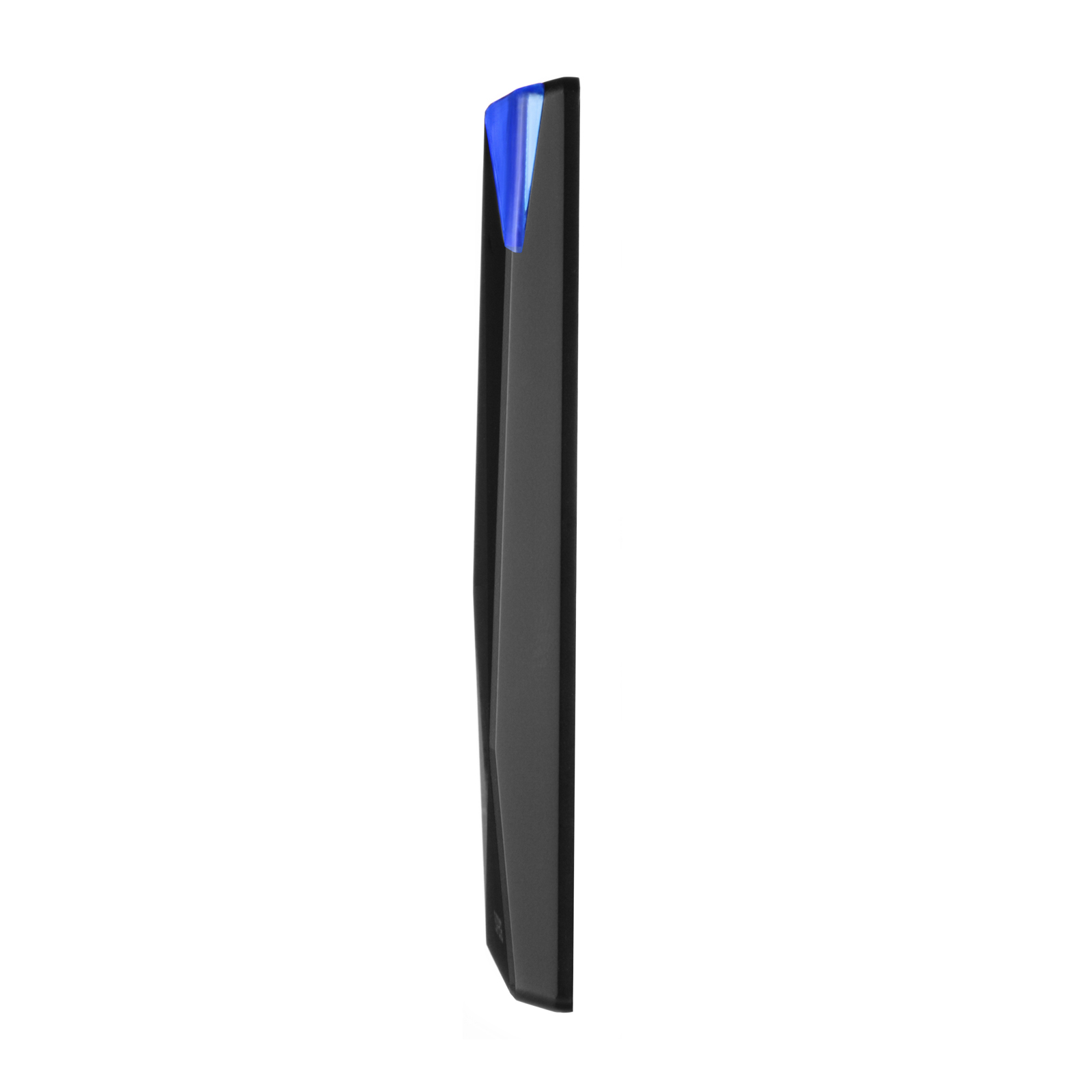

Xpass S2’s profile is only 11.4mm thick creating a slim aesthetic look when installed. Tailored to fit a standard US/EU/ASIA gang box, Xpass S2 allows for quick and easy installations
Xpass S2 has been comprehensively sealed against invasive moisture, dust and liquid. Featuring IP65 rated protection, its meticulous sealing, and extra protective engineering ensures that Xpass S2 will operate with unmatched reliability in all type of installation. Additionally, Adaptive temperature control will allow Xpass S2 to operate in extreme cold temperature (Operationaltemperature -35°C to 65°C)
Xpass S2’s flexible system design and cost advantages with comprehensive communication interfaces and relay such as TCP/IP, RS485 and Wiegand. In addition, it provides multiple in/out relay to offer extra flexibility. For further expansion, optional external relay unit is also available.
Specification
| Category |
Feature |
Xpass S2 | Hardware |
CPU |
533MHz DSP |
|---|---|---|---|---|---|
| Main |
Biometric |
- | Memory |
16MB RAM + 16MB Flash |
|
| IP Rating |
IP65 | LCD |
- | ||
| RF Option |
13.56MHz MIFARE Classic®/DESFire®/Felica | LED Indicator |
Multi-Color | ||
| Multi-Controller |
Y | Sound |
16-bit Hi-Fi |
||
Capacity |
Max User (1:1) |
50,000 | Operating Temp. |
-35° to 65°C |
|
| Max User (1:N) |
50,000 | Tamper |
Yes |
||
| Max Template (1:1) |
- | Power |
12VDC |
||
| Max Template (1:N) |
- | PoE |
- | ||
| Max Text Log |
100,000 | Dimensions (W x H x D mm) |
80 x 120 x 11.4 | ||
| Max Image Log |
- | ||||
Interface |
WiFi |
- | |||
| TCP/IP |
Yes | ||||
| RS-485 |
1ch Host or Slave (Selectable) |
||||
| RS-232 |
- | ||||
| Wiegand |
1ch In or Out (Selectable) |
||||
| TTL Input |
2 Inputs | ||||
| Relay |
1 Relay | ||||
| USB |
- | Certificates | CE, FCC, MSIP(KCC),IP65,RoHS,REACH | ||
| SD Card Slot |
- | Compatibility | BioStar | - | |
